產(chǎn)品結構特點
本系列氣動球閥是作為控制含塵、含固體粉末，特別適用于高爐煤粉噴吹、空氣管路及噴槍管路等系統(tǒng)。
1、閥座帶有磨損自動補償裝置，有效確保閥門的密封性能。
2、特殊材料制成的密封圈，具有耐高溫、耐磨損、使用壽命長的特點。
3、閥門結構緊湊、啟閉靈活、安裝維修方便。
Construction Features
The Air operated ball valve series are designed for controllingthe powders containing dusts or solid bodies, especially for thosefields or systems as coal-powder injection in high-furnace, airflowlines, lance lines, etc.
1.Wear-auto-compensation equipment is applied with the valveseat to effectively ensure the sealing performance of the valve.
2.The seal ring made from exotic materials features such spe-c ialties as high-temperature resistance,abrasion-resistance, longservice-life, etc.
3.The valve bears those characteristics like compact structure,flexible on-off, and convenient method for installation and mainte-nance.
主要零件材質 Main Parts and Materials
| 零件名稱 Accessory name | 材質 Materials |
| 閥體、閥蓋 Body,bonnet | WCB |
| 球體、閥座 Globe Body,seat | 1Cr18Ni9Ti+硬鉻 ICr18Ni9Ti+Hard chrome |
| 閥桿 Stem | 2Cr13 |
| 密封圈 Sealing ring | 特種耐磨耐高溫四氟 Special wearing-resisting and high- temperature resistance tetraf luorine |
| 螺栓 Bolt | 中碳鋼 Medium Carbon stell |

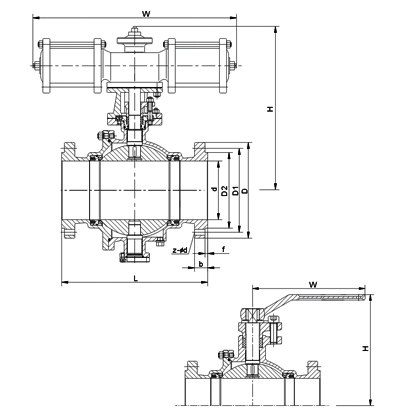

主要外型及連接尺寸表Form of Main Types and Connecting Dimension
| 公稱壓力 Nominal pressure | 1.6Mpa |
| 殼體試驗壓力 Shell Test Pressure | 2.4Mpa |
| 高壓液密封 High-Pressure Liquid Sealing | 1.76Mpa |
| 低壓氣密封 Low-Pressure Hermetic Sealing | 0.6Mpa |
| 適用溫度 Applicable Temperature | -28~300℃ |
| 適用介質 Applicable Mediums | 含塵氣體、煤粉等 Dusty gases,Powder coal,etc. |
| 結構長度按 Structural length follows | GB1221-89 |
| 法蘭尺寸按 Flange Dimension follows | GB9113、JB79-59 |
| 檢驗試驗按 Test and Inspection follows | JB/T9092-99 |
| 驅動方式 Driving manner | 手動、氣動 Manual/Pneumatic |
| 公稱壓力 PN(MPa) Nominal pressure | 公稱通徑 DN(mm) Nominal diameter | 尺寸 Dimension(mm) | ||||
| L | W | H | ||||
| 手動 Manual | 氣動 Pneumatic | 手動 Manual | 氣動 Pneumatic | |||
| 1.6
| 25 | 180 | 140 | 235 | 90 | 298 |
| 32 | 200 | 155 | 235 | 107 | 304 | |
| 40 | 220 | 250 | 330 | 127 | 370 | |
| 50 | 220 | 250 | 330 | 140 | 376 | |
| 65 | 241 | 350 | 400 | 164 | 425 | |
| 80 | 283 | 350 | 510 | 177 | 484 | |
| 100 | 305 | 420 | 510 | 206 | 531 | |
| 125 | 356 | 700 | 580 | 292 | 570 | |
| 150 | 394 | 1000 | 720 | 320 | 570 | |
| 200 | 457 | 720 | 610 | |||
| 250 | 533 | 900 | 670 | |||
| 300 | 610 | 1050 | 740 | |||
| 350 | 686 | 1290 | 790 | |||
| 400 | 762 | 1600 | 905 | |||
其余連接尺寸請參閱樣本《主要外型與連接尺寸表達式》 | ||||||
